Cobot Palletiser Systems

Streamline your packaging process with a
simple and ready-to-deploy automation solution.

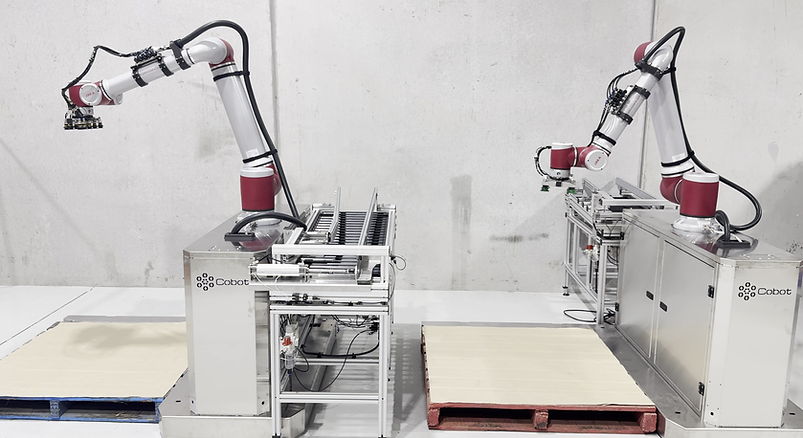

Palletiser Cobots

Easy to use Interface - Staff of any level can operate and handle our Cobot systems, with our easy to use  HMI, setup and start routine, we have purposely designed our system to be operated by personnel of any skill level.

Pallet Pal Software Included - With our new in built system users can create any pallet pattern they wish with our Pallet Pal software.  it is possible to pick up to 6 boxes at a time with our custom gripper system. even the most complex patterns become effortless. You’re in full control — just take a look below and try it out for yourself.

Compact System - This system occupies nearly the same area as the two pallets it palletises maximizing efficiency without compromising on performance. Our system leverages collaborative robots (cobots) that work safely alongside humans, eliminating the need for traditional safety fencing and reducing overall footprint and setup complexity.

Fast, Flexible Deployment - Thanks to our mobile design, the system simply rolls into place and is ready to perform. The mobile design allows users to deploy the system across multiple production lines with ease — maximizing flexibility and return on investment. With a setup time of just 5 minutes, there’s no hassle and no downtime. Operating on standard 240V 20A power and 6 bar air pressure, it’s truly plug-and-play.

How our Cobot Palletiser benefits your business

Increase Productivity​

Get continuous operation at higher speeds with heavier products

Protect Workers

Reduce repetitive strain injuries by automating heavy, repetitive lifting

Fast Return

Reduce labour cost and dependency for a fast return on investment

Our Latest System offering

30kg Fanuc Cobot Palletiser

Our 30kg Cobot Palletiser offers a plug-and-play setup with  standard 240V power and 6 bar air. Its intuitive software requires no experience, allowing fast pallet pattern creation. With a 30kg payload, the new CRX 30 Fanuc robot, and universal gripper system, it’s a reliable, ready-to-use solution for diverse applications. allowing it


Scroll down to see custom options for this system

From Design to Installation all Palletisers are built in house by our Melbourne based team



We offer a variety of Cobot Palletising solutions, enabling greater system customisation to your specific needs.​​

Our Robot Palletising Features

Continuous Operation

Collaborative Pallet Change_edited.png

Collaborative robot keeps working during pallet changes, for improved throughput over traditional robots

Completely Portable

With integrated wheels and fork lifting points you have the flexibility to move one system between multiple lines

Wheels and Fork Lifting Points.png

Easy Programming

Quickly build pallet patterns and pickup configurations in our PalletPal software - no programming experience necessary!

Screenshot 2025-03-27 163425.png

Palletising Systems Options

Pallet Bays

Single Bay

Reduced footprint for palletising in tight spots

Single or dual bay (3)_edited.png

Dual Bay

For continuous operation - keeps palletising during pallet changes

Single or dual bay (2)_edited.png

Standard option

Robot Post

Fixed Post

Suitable for most applications, the fixed post works for pallets up to 1,300mm high

Standard option

Telescopic Post

Used for taller pallets, the telescopic post allows for pallets up to 2,200mm high

Gripper

Closed Boxes

For closed boxes we supply vacuum area grippers - suitable for a range of product sizes and pick quantities

RSC Sack Open-top (3)_edited.png

Standard option

Open Boxes

For open boxes we supply tine or clamp gripper. Contact us for more information

RSC Sack Open-top (4)_edited.png

Bags & Sacks

For bags & sacks we provide vacuum or claw grippers. Contact us for more information

RSC Sack Open-top (2)_edited.png

At Cobot we design and manufacture our own robot grippers using off the shelf components, allowing end users more versatility and options for components.

If you would like to own just a griper - inquire today.

Infeed Conveyor

Universal Infeed Conveyors

Suitable for most product types, this universal conveyor aligns products accurately, ready for pickup

Custom Conveying

We offer custom conveying solutions for roller, belt and chain conveyors, and any combination of the above! Contact us today for more details

Safety Options

Collaborative Safety

This option uses the robots inherent collaborative safety - limiting force and speed to to allow fast stopping in the event of a collision

Single or dual bay (3)_edited.png

Safety Fencing

At higher speeds, or with hazardous tooling, additional safety may be required. Clear panel safety fencing is a compact and high visibility way to achieve additional safety

Palletiser Safety Fencing_edited.png

Floor Scanners

Floor scanners offer additional safety at higher speeds or with hazardous tooling. Floor scanners detect approaching personnel and either slow or stop the system to eliminate hazard exposure

Palletiser Floor Scanner (5)_edited.png

Standard option
